KONE TRANSITMASTER™ 120
Designed for demanding people flow
Product information
Description

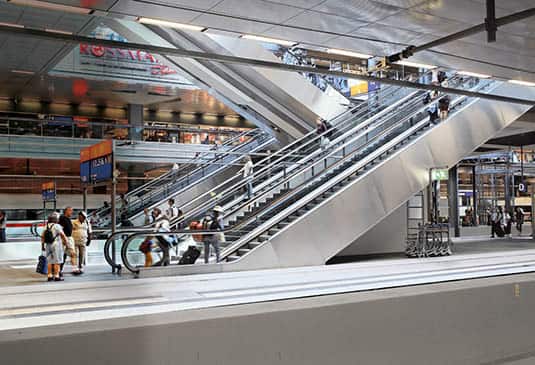

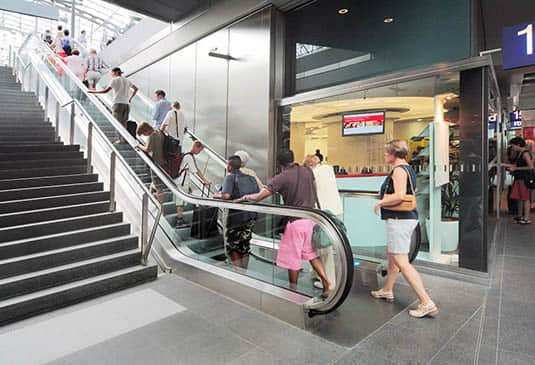

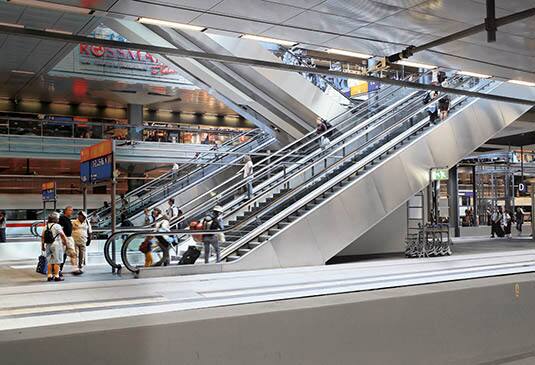

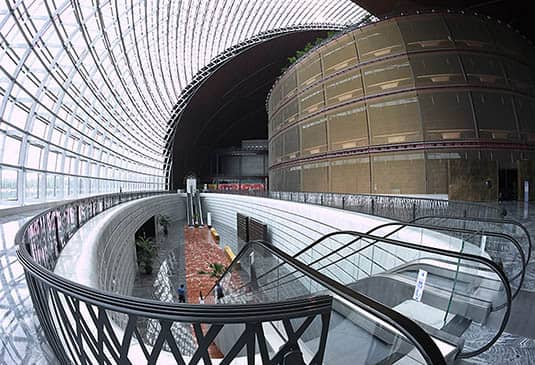

The KONE TransitMaster™ 120 is a durable, eco-efficient escalator optimized for transit centers. It provides a smooth, safe ride and a pleasant passenger experience, even under the most demanding traffic conditions.
Specifications
- Operational environment: indoor, semi-outdoor, outdoor
- Speed: 0.5, 0.65, 0.75 m/s
- Inclination: 27.3º, 30º, 35º
- Step width: 800, 1000 mm
- Vertical rise: up to 15 m

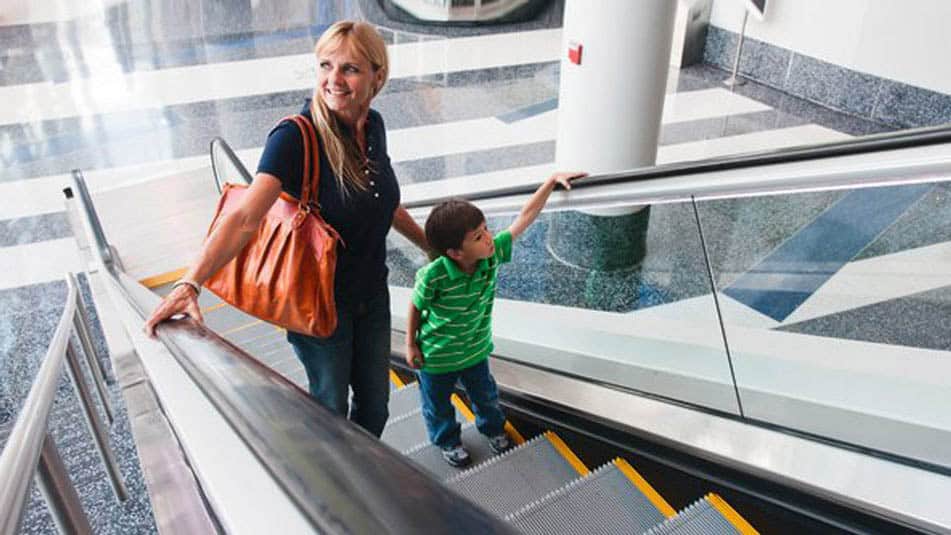

Safety
- Safety is the starting point for every KONE solution. KONE TransitMaster 120 conforms to all local and international safety codes.
- We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.
Tools and downloads
Options and highlights
ENERGY-EFFICIENCY
- Smart operational modes and inverter optimize energy consumption under different load conditions
- Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
SAFETY ENHANCEMENT
In addition to the standard safety features, we offer optional safety features including:
- New traffic signalization solutions to provide extra guidance
- Audible alarms provide clear guidance on escalator travel direction
- Alarm for travel direction if passengers enter an escalator in the wrong direction
- Fall-prevention barrier and extended balustrades provide additional passenger protection
DESIGN
High quality visual design for the best possible user experience:
- Innovative and attractive lighting solutions that also improve passenger guidance and safety
- Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
Contact us for a detailed cost estimate
KONE escalators and autowalks
| Product name
| Type
| Segment
| Maximum rise
| Speed
| Inclination
| KONE TransVario direct drive available
| 24/7 Connected Services available
| Energy-efficiency class
|
| TravelMaster 110
| Escalator | Commercial, retail, hotel, office, multi-use, stadium, medical
| 13 m
| 0.5 m/s | 30°, 35°
| TravelMaster™ 110T (factsheet) | Yes | A+++ |
| TravelMaster 115
| Inclined autowalk | Commercial, retail, hotel, office, multi-use, stadium, medical
| 7 m
| 0.5 m/s
| 10°, 12°
| Yes | A+++ | |
| TransitMaster 120
| Escalator | Infrastructure
| 15 m
| 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | TransitMaster™ 120T (factsheet) | Yes | A+++ |
| TransitMaster 140
| Escalator | Infrastructure
| 35 m
| 0.5, 0.65, 0.75 m/s | 27.3°, 30° | TransitMaster™ 140T (factsheet) | Yes | A+++ |
| TransitMaster 165
| Horizontal autowalk | Infrastructure
| 100 m length
| 0.5, 0.65, 0.75 m/s
| 0-6°
| Yes | A+++ |
